Private Terminator Integrated
The private terminator Integrated PTI is the ideal solution to increase the range of several S0 interfaces on the basis of a Star Formation.
The PTI comes in a module in 19” format. This can be installed either into an already existing system or in a NovaTec SIP Gateway which can be ordered directly from NovaTec
Each PTI -SU module contains four converters of S0 to U0 with same functionality as the PT-SU .
The PTI is attached to the already existing S0-Interfaces, without any need for further configuration.
In a NovaTec S20 up to 17 PTI’s can be inserted, this will result in the maximum configuration a knot of max. 68 S0-Interfaces.
If an active Line power is required to remote power the U0-Interface e. g. for remote line power for the PT-US , this can be realised with the use of a PTI-SU-LP.
The range can be increased by the use of the PT Repeater for up to 24 km. The remote line power supply for the PT Repeater can be supplied using PTI-SU-LP.
Ordering Information
| PTI-SU | 1F3201 | |
| PTI-SU-LP | 1F3201-LP |
Technical Specification for the Private Terminator Integrated PTI-SU
| Mechanical Data | |
| Dimensions | 19” module with 6HU |
| Weight | 0.4 kg (PTI-SU) |
| 0.7 kg (PTI-SU-LP) | |
| Electrical Data | |
| Input Power | 5 V, 0,5 A (PTI-SU) |
| 5 V, 1,1 A (PTI-SU-LP) | |
| Output Power (only PTI-SU-LP) | 110 V= by 25 mA Load. |
| Protocols | The U0-Interface is according to 2B1Q-Standard (ANSI T1.601) and the S0-Interfaceis according to I.430 specifications |
| Interfaces and their ranges | U0-Interface: 8 – 10 km depending on used Cable Types and Absorption (max. 40 db/40 kHz) |
| Environmental conditions | 0 – 70 Grad Celsius with a max Humidity of 70 % (non-condensing) |
Further information can be found in the Guidelines which are available for download.
Range Extension with the PTI
With the Private Terminator Integrated “PTI” the Range of several S0-Interfaces on the basis of a neutral point of up to 8 km by means of a 2-Wire cable can be increased. Each private terminator Integrated PTI has four S0 and four U-interfaces and can thus extend the range of up to four S0-Interfaces.
The Private Terminator Integrated PTI consists of a single module in 19” format. For installation the private terminator Integrated is PTI mounted into a suitable 19” rack system.
At the front of the module you can find the necessary interface connections. Additionally on the front of the PTI you will find status indications, with which the operating condition of the interfaces is indicated.

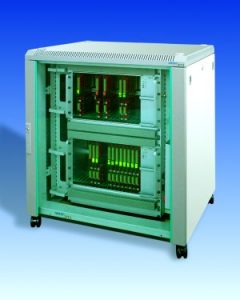

The TransNova System is suitable as a base system for the housing of the Private Terminator Integrated PTI . Here the following maximum stages of Construction can be seen:
| Base system | Max. Number of Modules | Number of Channels |
| TransNova S5 | 1 | 4 |
| TransNova S6 | 5 | 20 |
| TransNova S10 | 2 | 8 |
| TransNova S20 | 17 | 68 |
If an active power supply of the U-interface is required e. g. for the remote power supply for the PT-US, then this can be achieved with the private terminator Integrated with the LINE Powered PTI-LP option.
The private terminator Integrated PTI convinces by its simple handling and reliability.
