SIP Gateway 19″

NovaTec SIP Gateway – 19″

The NovaTec SIP Gateway enables the generation of ISDN respectively analogue interfaces within IP environments and also allows ISDN over IP worldwide.

Thus the NovaTec SIP Gateway can be used wherever appliances and systems with ISDN or analogue interfaces need to be sustained despite the conversion to VoIP.



Problems frequently occur within companies when merging company communication systems because the old infrastructure is not compatible with the newer technology. An earnest problem has arisen since the globalisation of VoIP and the coherent merging of the classical telecommunication with IT technologies.



Authorities, both on government and county levels, and lots of businesses have already experienced the same problems on their first step to VoIP: there are telephones with the classical interfaces (i.e. S0, UP0 or the basic analogue) available. These are normally fax machines or peripheral equipment which would be uneconomical to converge.



The NovaTec SIP Gateway is also available with redundancy enabled power supplies.



Here is where the NovaTec SIP Gateway comes into service providing nearly unlimited applications such as:



  • Integration of existing video conference systems in the available or planned VoIP infrastructure
  • Operation of subscriber devices and systems with BRI interfaces (data and voice) within VoIP infrastructures, e. g. Cisco networks
  • Operation of subscriber devices and systems with UP0 interface within VoIP infrastructures*
  • Operation of analogue end devices within VoIP infrastructures (e. g. fax machines, T.37, T.38)*
  • Synchronous data transfer via VoIP networks through synchronisation with GPS receiver



The NovaTec SIP Gateway is available in various types depending on the following interfaces:

  • IP (SIP)
  • ISDN BRI interfaces (NT/TE configurable)
  • analogue interfaces (ATA)
  • ISDN UP0 interfaces (NT/TE configurable)



Selection of possible users:

  • Private households
  • Small and medium-sized enterprises
  • International co-operations
  • VoIP Providers (SIP)
  • Internet Service Providers
  • Municipal Network Operators
  • Broadband Operators



S5

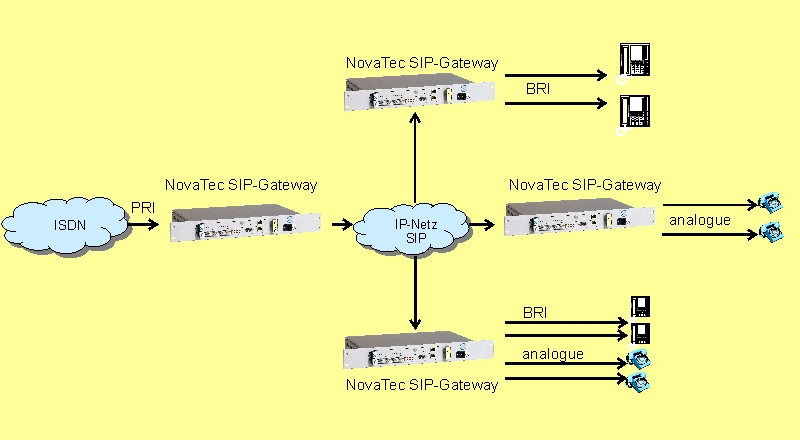

Example: NovaTec SIP Gateway operation within an infrastructure

S5-SIP

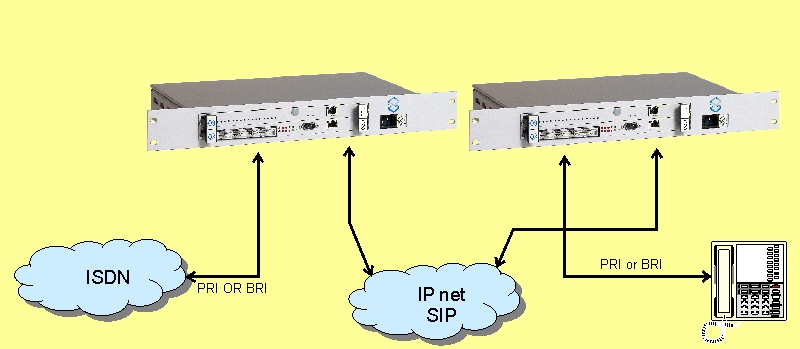

Example: Connection of a remote ISDN BRI respectively  ISDN-UP0 interface via IP
